Overview
My question concerns the amount of read vs write units that register on MongoDB Atlas after updateOne operations on documents in a bucket pattern.
Background
I have a stream of steady IoT data for measurements at minute intervals. I decided to bucket these measurements daily and so they are stored in documents that have a startDate and endDate field compartmentalising each day. Here’s a representative schema:
{
"_id": "6323bcf78fd1d0c6dc571110",
"endDate": "2022-09-16T23:59:59.000Z",
"startDate": "2022-09-16T00:00:00.000Z",
"batteryVoltageSum": 2455.2400000000002,
"count": 678,
"packetRSSISum": -34791,
"measurements": [
{
"timestamp" : ISODate("2022-09-16T01:00:01.000+01:00"),
"temperature" : 29.19889502762431,
"batteryVoltage" : 3.64,
}
... (up to 1439 more)
]
}
Every time I updateOne, I use the $push aggregation to add a measurement to the relevant array above (note that I am using upsert: true). If the bucket does not exist, I insert it, and use the $setOnInsert aggregation to set some field.
Here’s the full query:
_id: someId
}, {
$push: {
measurements: newMeasurement
},
$inc: {
batteryVoltageSum: measurement.batteryVoltage,
packetRSSISum: measurement.packetRSSI,
count: 1,
},
$setOnInsert: {
startDate,
endDate,
},
}, {
upsert: true
})
Expected Behaviour
Since updateOne with upsert does not retrieve the document that it updates or inserts, there should only be write units registered on MongoDB Atlas.
Actual Behaviour
Every time updateOne is triggered, the expected write units are registered, but , I also see a much bigger amount of read units that seem to grow proportionally with the size of the measurements array. This is proof that the updateOne operation is in fact also triggering reads for some reason.

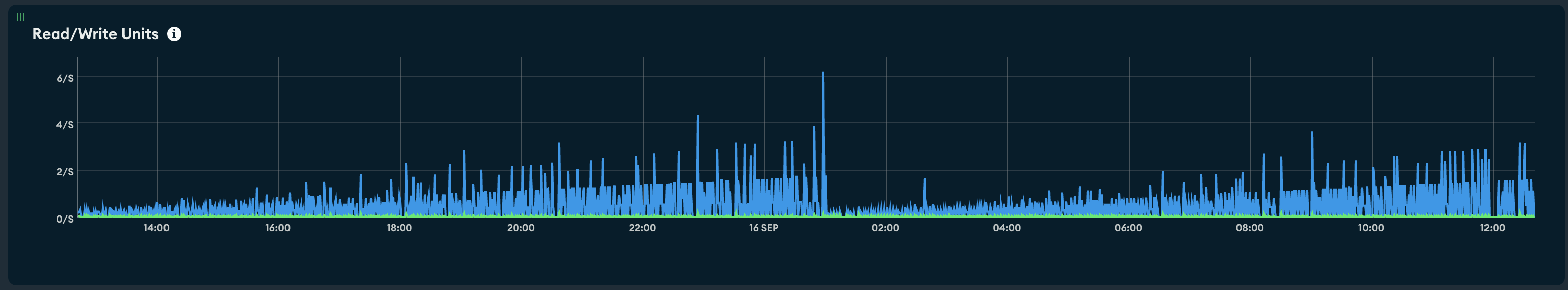

Here’s a screenshot of this from my logs. As you can see, at the beginning of each day when the bucket has no measurements, the read units are much less and they can be seen to grow throughout the day as measurements are recorded at minute intervals.
Concern
Why are reads metered that are proportional to the size of a nested array when I am only performing an updateOne (with upsert) operation on such a document?
