Rename a Diagram

On this page

  • About this Task
  • Steps
  • Learn More

You can rename diagrams on the Mapping screen. Relational Migrator displays diagram names on the Diagram Toolbar.

About this Task

  • You can rename diagrams to customize your diagram properties.

  • Relational Migrator displays your diagram names on the Diagram Toolbar of the Mapping screen and in the Diagram Properties pane.

Steps

1

Navigate to the diagram you want to rename

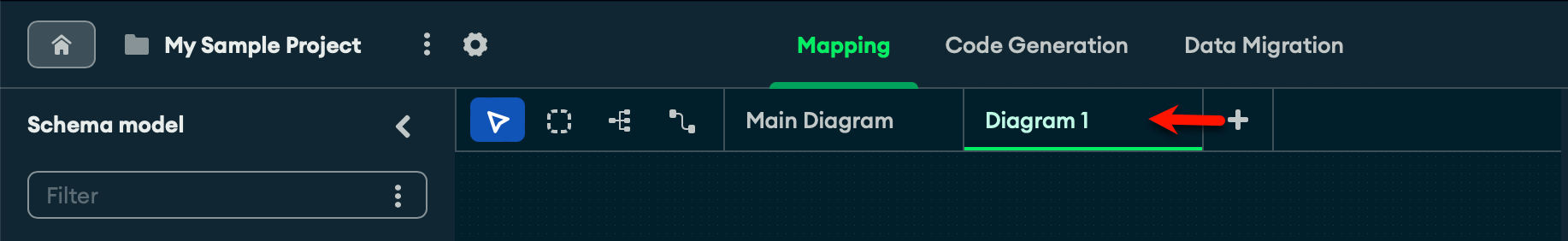

In the Diagram Toolbar, click the name of the diagram to display the diagram.

Diagram toolbar
2

Open the Diagram Properties pane

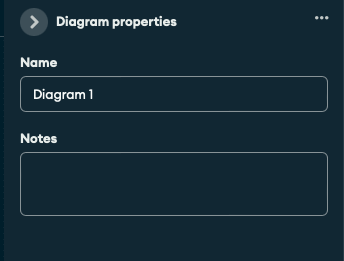

Click the arrow button to open the Diagram Properties pane.

Diagram Properties pane

The Diagram Properties pane displays the active diagram name and notes. By default, Relational Migrator names diagrams in the order they were created and leaves the notes field empty.

3

Enter your new diagram name in the Name box

When you click outside the Name box, Relational Migrator automatically saves your new diagram name and updates the Diagram Toolbar.

Learn More

  • Create a Diagram

  • Clone a Diagram

  • Delete a Diagram
