MongoDB Federated Authentication links your credentials across many MongoDB systems. MongoDB Cloud Manager implements authentication using the Federated Identity Management model.

Using the FIM model:

  • Your company manages your credentials using an Identity Provider (IdP). With its IdP, your company can enable you to authenticate with other services across the web.

  • You configure Cloud Manager to authenticate using data passed from your IdP.

This goes beyond SSO as your IdP manages your credentials, not MongoDB. Your users can use Cloud Manager without needing to remember another username and password.

The following procedure walks you through linking an IdP to Cloud Manager.

Federation Management Access

You can manage federated authentication from the Federation Management Console. You can access the console as long as you are an Organization Owner in one or more organizations that are delegating federation settings to the instance.

Procedure

Important

Two-Stage Configuration

Depending on your Identity Provider, some circular logic may apply when linking it to a Service Provider like Cloud Manager. To link your IdP to Cloud Manager:

  • Your IdP needs values from Cloud Manager and

  • Cloud Manager needs values from your IdP.

To simplify setup, Cloud Manager prompts you to enter placeholder values for the IdP and Cloud Manager configurations. You will replace these values later in the procedure.

Configure An External Identity Provider Application

To configure Federated Authentication, you must have an external SAML IdP application. In the SAML IdP, you must:

  1. Create a new application for Cloud Manager.

  2. Configure initial SAML values for the new application:

    1. Set placeholder values for the following fields:

      • SP Entity ID or Issuer

      • Audience URI

      • Assertion Consumer Service (ACS) URL

    2. Set valid values for the following fields:

      Field
      Value
      Signature Algorithm

      The signature algorithm is the algorithm used to encrypt the IdP signature. Cloud Manager supports the following signature algorithm values:

      • SHA-1

      • SHA-256

      Name ID

      A valid email address.

      IMPORTANT: Name ID is both your email address and username.

      Name ID Format
      urn:oasis:names:tc:SAML:1.1:nameid-format:unspecified

    3. Create attributes with Attribute Names for the following Attribute Values:

      • firstName

      • lastName

      Note

      The names of these attributes are case sensitive. Type these attribute names as shown in camelCase.

    4. Save these values.

Once you have completed the initial setup for your IdP application, you link the IdP to Cloud Manager to federate your users' logins.

Apply Your Identity Provider to Cloud Manager

Note

Prerequisite

This procedure assumes you already have an external IdP. To learn how to configure an IdP, see Configure An External Identity Provider Application.

You can configure Federated Authentication in Cloud Manager from the Federation Management Console. Use this console to:

  • Configure Identity Providers to authenticate users belonging to specified organizations.

  • Connect Cloud Manager Organizations to your IdP.

  • Verify and associate Domains with your IdP to force users to authenticate using that IdP.

Open the Management Console

1
In MongoDB Cloud Manager, go to the Organization Settings page.

  1. If it's not already displayed, select your desired organization from the Organizations menu in the navigation bar.

  2. Click the Organization Settings icon next to the Organizations menu.

    The Organization Settings page displays.

2
In Setup Federated Login, click Visit Federation Management App.

From the Management Console:

  1. Click Add Identity Providers

  2. If you do not have any Identity Providers configured yet, click Setup Identity Provider. Otherwise, On the Identity Providers screen, click Add Identity Provider.

  3. Enter or select the following SAML Protocol Settings. All fields are required:

    Field
    Description
    Configuration Name
    Name of this IdP configuration.
    IdP Issuer URI

    Identifier for the issuer of the SAML Assertion.

    Specify a placeholder value for this field. Obtain the real value for this field from your IdP once you have supplied it with the Cloud Manager metadata.

    IdP Single Sign-On URL

    URL of the receiver of the SAML AuthNRequest.

    Specify a placeholder value for this field. Obtain the real value for this field from your IdP once you have supplied it with the Cloud Manager metadata.

    IdP Signature Certificate

    PEM-encoded public key certificate of the IdP. You can obtain this value from your IdP.

    You can either:

    • Upload the certificate from your computer, or

    • Paste the contents of the certificate into a text box.

    Request Binding

    SAML Authentication Request Protocol binding used to send the AuthNRequest. Can be either:

    • HTTP POST

    • HTTP REDIRECT

    Response Signature Algorithm

    Response algorithm used to sign the SAML AuthNRequest. Can be either:

    • SHA-256

    • SHA-1

  4. Click Next.

Configure Your Identity Provider with Cloud Manager Metadata

Having set up your IdP in Cloud Manager, you can provide the required Cloud Manager metadata to your IdP.

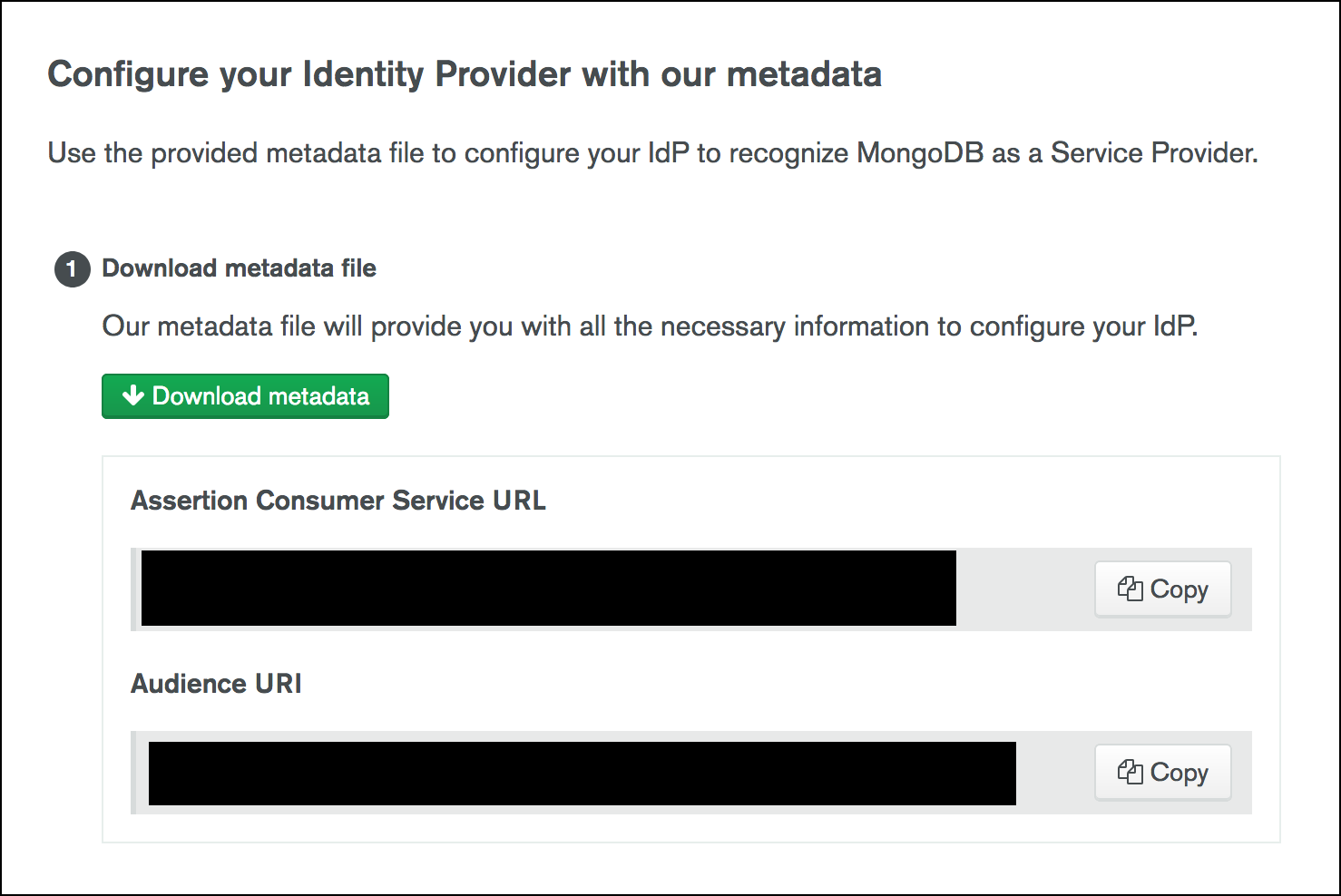

  1. On the Identity Provider screen in Cloud Manager, click Download metadata to download the metadata required by your IdP. Cloud Manager provides the data as an .xml file.

    Image showing how to download metadata

    Note

    Cloud Manager provides the Assertion Consumer Service URL and Audience URI if you wish to manually copy and save these values. These values are included in the metadata download.

  2. Upload the metadata to your IdP.

    You now have the necessary information to replace the placeholder IdP Issuer URI and IdP Single Sign-On URL values set when you set up the initial IdP mapping in Cloud Manager.

  3. In Cloud Manager, modify the placeholder values set for IdP Issuer URI and IdP Single Sign-On URL for the linked IdP with the proper values from your IdP.

  4. Optionally, add a RelayState URL to your IdP to send users to a URL you choose and avoid unnecessary redirects after login. You can use:

    Destination
    RelayState URL
    MongoDB MongoDB Cloud Manager
    The Login URL that was generated for your identity provider configuration in the MongoDB Cloud Manager Federation Management App.
    MongoDB Support Portal
    https://auth.mongodb.com/app/salesforce/exk1rw00vux0h1iFz297/sso/saml
    MongoDB University
    https://auth.mongodb.com/home/mongodb_thoughtindustriesstaging_1/0oadne22vtcdV5riC297/alndnea8d6SkOGXbS297
    MongoDB Community Forums
    https://auth.mongodb.com/home/mongodbexternal_communityforums_3/0oa3bqf5mlIQvkbmF297/aln3bqgadajdHoymn297
    MongoDB Feedback Engine
    https://auth.mongodb.com/home/mongodbexternal_uservoice_1/0oa27cs0zouYPwgj0297/aln27cvudlhBT7grX297
    MongoDB JIRA
    https://auth.mongodb.com/app/mongodbexternal_mongodbjira_1/exk1s832qkFO3Rqox297/sso/saml

  5. Return to Cloud Manager and click Finish.

Important

Once you link your IdP to Cloud Manager, it shows as Inactive in the Federation Management Console until you map at least one domain to the IdP.

Next Steps

After you successfully linked your IdP to Cloud Manager, you must map one or more domains to your IdP. Cloud Manager authenticates users from these domains through your IdP.
