Note

Starting with the 26 January 2021 Release, you must use AWS IAM roles instead of IAM users to manage access to your AWS KMS encryption keys for customer key management.

When you move from AWS IAM users to roles, ensure that your new role has access to your old AWS customer master key.

Important

Feature unavailable in Serverless Instances

Serverless instances don't support this feature at this time. To learn more, see Serverless Instance Limitations.

You can configure your Atlas project to use an AWS IAM role for accessing your AWS KMS keys for encryption at rest. You can either use an existing role or create a new role when you enable encryption at rest for your project.

This page covers configuring customer key management on your Atlas project for role-based access.

If you have not yet enabled encryption at rest for your new or existing Atlas project, follow the Enable Role-Based Access to Your Encryption Key for a Project procedure to enable encryption at rest for your Atlas project. If you have an Atlas project for which you have already enabled encryption at rest and configured credentials-based access to your encryption keys, follow the Switch to Role-Based Access to Your Encryption Key for a Project procedure to switch to role-based access to your encryption keys.

You must configure customer key management for the Atlas project before enabling it on clusters in that project.

Tip

See also:

  • Set Up Unified AWS Access

To configure customer key management, you must have Project Owner access to the project.

Users with Organization Owner access must add themselves to the project as a Project Owner.

Customer key management in Atlas follows a process called envelope encryption. This process creates multiple layers of encryption by encrypting one key with another key. To enable customer key management, Atlas uses the following encryption keys:

Customer-Managed Key (CMK)

Customer-managed keys are encryption keys that you create, own, and manage in AWS KMS. You create the CMK in AWS KMS and connect it to Atlas at the Project level. To learn more about the CMKs used in AWS KMS, see the AWS KMS Documentation.

Atlas uses this key only to encrypt the MongoDB Master Keys.

MongoDB Master Key

Each node in your Atlas cluster creates a MongoDB Master Key. MongoDB Master Keys are encryption keys that a MongoDB Server uses to encrypt the per-database encryption keys. Atlas saves an encrypted copy of the key locally.

This key is encrypted with the CMK and encrypts the per-database encryption keys.

Per-Database Encryption Key

Each node in your Atlas cluster also creates an encryption key per database in your cluster. Atlas uses these keys to read and write data via WiredTiger, which also encrypts and stores these keys.

This key is encrypted with the MongoDB Master Key.

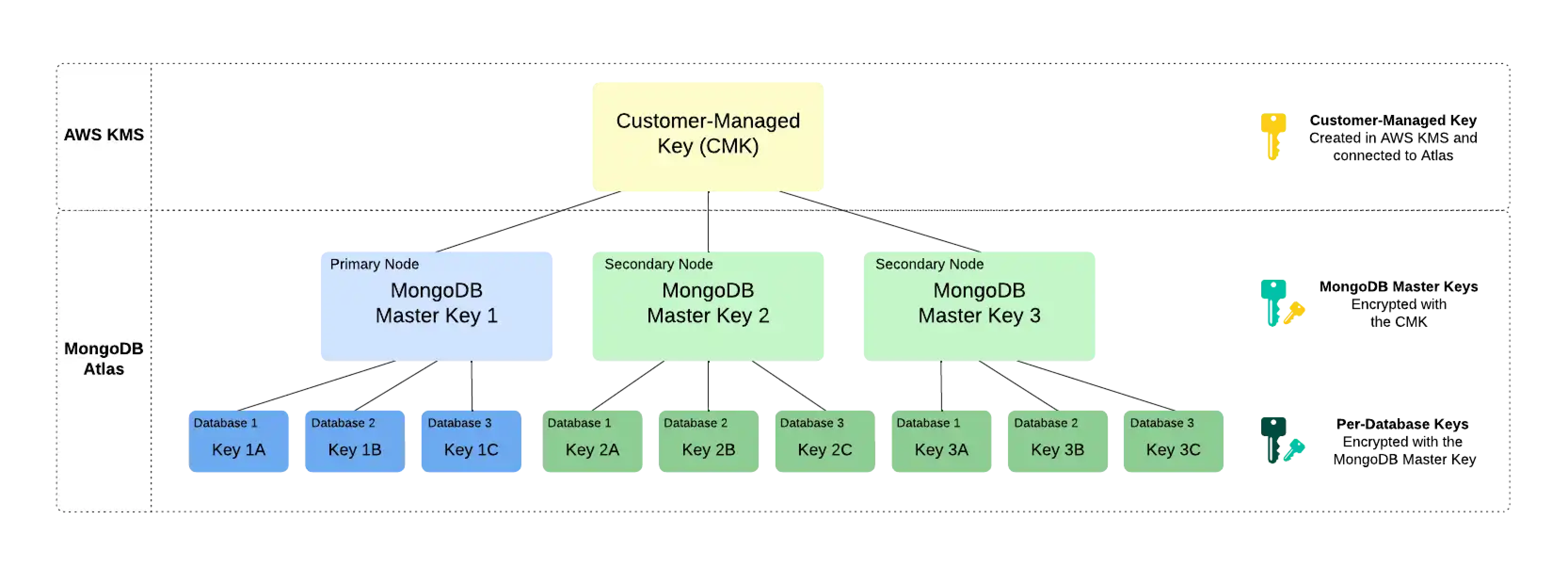

Consider the following encryption hierarchy for a three-node replica set. Atlas uses the CMK from AWS KMS to encrypt a unique MongoDB Master Key for each node in the cluster. Each node also contains three databases, each of which is encrypted with a unique per-database encryption key. When the cluster starts up, Atlas decrypts the MongoDB Master Key by using the CMK from AWS KMS and supplies this to the MongoDB Server.

Note

If you revoke Atlas's access to the CMK, Atlas shuts down the nodes in your cluster and you can't access your data until you restore access to the CMK.

Diagram of CMK workflow with AWS KMS and Atlas
click to enlarge

To enable customer-managed keys with AWS KMS for a MongoDB project, you must:

  • Use an M10 or larger cluster.

  • Have a symmetric AWS KMS key . To learn how to create a key, see Creating Keys in the AWS documentation.

    Note

    To ensure resilience in the event of a regional outage, configure your KMS key to be a multi-Region key.

    To learn more, see Reconfigure AWS KMS Region During an Outage.

  • Have an AWS IAM role with sufficient privileges. Atlas must have permission to perform the following actions with your key:

    Note

    If you wish to use the AWS KMS key with an AWS IAM role from a different AWS account instead of that of the IAM role which created the AWS KMS key , ensure you have sufficient privileges:

    • Add a key policy statement under the AWS KMS key to include the external AWS account.

    • Add an IAM inline policy for the IAM role in the external AWS account.

    For a comprehensive discussion of IAM roles and customer master keys, see the AWS documentation.

    After confirming the above privileges, you can follow the usual steps to configure the KMS settings in Atlas, with the following exception:

    • You must provide the full ARN for the AWS KMS key (e.g. arn:aws:kms:eu-west-2:111122223333:key/12345678-1234-1234-1234-12345678) instead of the master key ID (e.g. 12345678-1234-1234-1234-12345678) in the AWS KMS key ID field.

    To learn how to create an IAM role, see IAM Roles in the AWS documentation.

    Atlas uses the same IAM role and AWS KMS key settings for all clusters in a project for which Encryption at Rest is enabled.

  • If your AWS KMS configuration requires it, allow access from Atlas IP addresses and the public IP addresses or DNS hostnames of your cluster nodes so that Atlas can communicate with your KMS. You must include the IP addresses in your managed IAM role policy by configuring IP address condition operators in your policy document. If the node IP addresses change, you must update your configuration to avoid connectivity interruptions.

1
  1. If it's not already displayed, select the organization that contains your project from the Organizations menu in the navigation bar.

  2. If it's not already displayed, select your project from the Projects menu in the navigation bar.

  3. In the sidebar, click Advanced under the Security heading.

    The Advanced page displays.

2
3

To create a new AWS IAM role for accessing your AWS KMS keys for encryption at rest, follow the Create New Role with the AWS CLI procedure. If you have an existing AWS IAM role that you want to authorize, follow the Add Trust Relationships to an Existing Role procedure.

4

Note

This policy statement allows MongoDB's AWS Principal to use the customer's KMS key for encryption and decryption operations. The Atlas Principal is not secret and is used across all Atlas customers. This is a highly-restricted, purpose-limited AWS account, with no resources in it other than the IAM user. The ExternalId in the policy statement is unique for each Atlas project, but it is not secret. The ExternalId is used to mitigate the possibility of cross-context (confused deputy) vulnerabilities. Atlas's use of a common principal to access all customers' keys is an access pattern recommended by Amazon, as described here.

The access policy for encryption at rest looks similar to the following:

{
"Version": "2012-10-17",
"Statement": [
{
"Effect": "Allow",
"Action": [
"kms:Decrypt",
"kms:Encrypt",
"kms:DescribeKey"
],
"Resource": [
"arn:aws:kms:us-east-1:123456789012:key/12x345y6-7z89-0a12-3456-xyz123456789"
]
}
]
}
5
6
  1. Select the role to assign from the AWS IAM role dropdown list.

  2. Specify your encryption key in the Customer Master Key ID field.

  3. Select the AWS region for your encryption key.

1

Use the API endpoint to create a new AWS IAM role. Atlas will use this role for authentication with your AWS account.

Keep the returned field values atlasAWSAccountArn and atlasAssumedRoleExternalId handy for use in the next step.

2
  1. Log in to your AWS Management Console.

  2. Navigate to the Identity and Access Management (IAM) service.

  3. Select Roles from the left-side navigation.

  4. Click on the existing IAM role you wish to use for Atlas access from the list of roles.

  5. Select the Trust Relationships tab.

  6. Click the Edit trust relationship button.

  7. Edit the Policy Document. Add a new Statement object with the following content.

    Note

    This policy statement allows MongoDB's AWS Principal to use the customer's KMS key for encryption and decryption operations. The Atlas Principal is not secret and is used across all Atlas customers. This is a highly-restricted, purpose-limited AWS account, with no resources in it other than the IAM user. The ExternalId in the policy statement is unique for each Atlas project, but it is not secret. The ExternalId is used to mitigate the possibility of cross-context (confused deputy) vulnerabilities. Atlas's use of a common principal to access all customers' keys is an access pattern recommended by Amazon, as described here.

    Note

    Replace the highlighted lines with values returned from the API call in step 1.

    {
    "Version": "2020-03-17",
    "Statement": [
    {
    "Effect": "Allow",
    "Principal": {
    "AWS": "<atlasAWSAccountArn>"
    },
    "Action:" "sts:AssumeRole",
    "Condition": {
    "StringEquals": {
    "sts:ExternalId": "<atlasAssumedRoleExternalId>"
    }
    }
    }
    ]
    }
  8. Click the Update Trust Policy button.

3

Use the API endpoint to authorize and configure the new IAM Assumed Role ARN. If the API call is successful, you can use the roleId value when configuring Atlas services that use AWS.

4

Send a PATCH request to the encryptionAtRest API endpoint to update the awsKms.roleId field with your authorized AWS IAM role ID.

Example

curl --user "{public key}:{private key}" --digest \
--header "Accept: application/json" \
--header "Content-Type: application/json" \
--include \
--request PATCH \
"https://mongodb.prakticum-team.ru/proxy/cloud.mongodb.com/api/atlas/v1.0/groups/{groupId}/encryptionAtRest?pretty=true&envelope=true" \
--data '
{
"awsKms": {
"enabled": true,
"roleId": "<roleId>",
"customerMasterKeyID": "<master-key-id>",
"region": "<aws-region>"
}
}'

Important

If you switch your encryption keys to role-based access, you can't undo the role-based access configuration and revert to credentials-based access for encryption keys on that project.

1
  1. If it's not already displayed, select the organization that contains your project from the Organizations menu in the navigation bar.

  2. If it's not already displayed, select your project from the Projects menu in the navigation bar.

  3. In the sidebar, click Advanced under the Security heading.

    The Advanced page displays.

2
3
4

To create a new AWS IAM role for accessing your AWS KMS keys for encryption at rest, follow the Create New Role with the AWS CLI procedure. If you have an existing AWS IAM role that you want to authorize, follow the Add Trust Relationships to an Existing Role procedure.

To update your encryption key management with the Atlas Administration API, use the same steps outlined in the above procedure.

After you Enable Role-Based Access to Your Encryption Key for a Project, you must enable customer key management for each Atlas cluster that contains data that you want to encrypt.

Note

You must have the Project Owner role to enable customer key management for clusters in that project.

For new clusters, toggle the Manage your own encryption keys setting to Yes when you create the cluster.

For existing clusters:

1
  1. If it's not already displayed, select the organization that contains your desired project from the Organizations menu in the navigation bar.

  2. If it's not already displayed, select your desired project from the Projects menu in the navigation bar.

  3. If it's not already displayed, click Clusters in the sidebar.

    The Clusters page displays.

2

For the cluster that contains data that you want to encrypt, click the , then select Edit Configuration.

3
  1. Expand the Additional Settings panel.

  2. Toggle the Manage your own encryption keys setting to Yes.

  3. Verify the status of the Require Private Networking setting for your cluster.

    If you configured Encryption at Rest Using CMK (Over Private Networking) for Atlas at the project level, the status is Active. If you haven't configured any private endpoint connection for your project, the status is Inactive.

4
  1. Click Review Changes.

  2. Review your changes, then click Apply Changes to update your cluster.

Note

This feature is not available for any of the following deployments:

  • Serverless instances

  • M0 clusters

  • M2/M5 clusters

  • Flex clusters

To learn more, see Limits.

When you use your own cloud provider KMS, Atlas automatically rotates MongoDB Master Keys at least every 90 days. Your key rotation will begin during a maintenance window, if you have one configured. Deferring maintenance (either manually or automatically) may cause the key to be rotated past the 90-day mark. Keys are rotated on a rolling basis and the process does not require the data to be rewritten.

Atlas does not automatically rotate the AWS CMK used for AWS-provided Encryption at Rest.

As a best practice, Atlas creates an alert to remind you to rotate your AWS CMK every 90 days by default when you enable Encryption at Rest for an Atlas project. You can configure the time period of this alert.

You can rotate your AWS CMK yourself or configure your AWS KMS instance to automatically rotate your CMK. If you configure automatic AWS CMK rotation, the default time period for rotation is approximately 365 days.

If you have already set up an automatic CMK rotation in AWS and don't want to receive the Atlas alert to rotate your CMK every 90 days, you can modify the default alert period to be greater than 365 days or disable the alert.

This page explains how to create a new key and update the CMK ID in Atlas to rotate your Atlas project CMK. This method of key rotation supports more granular control of the rotation period compared to AWS KMS automatic CMK rotation.

Important

Cloud Backups with Encryption at Rest

For clusters using Encryption at Rest and Back Up Your Cluster, Atlas uses the project's CMK and AWS IAM user credentials at the time of the snapshot to automatically encrypt the snapshot data files. This is an additional layer of encryption on the existing encryption applied to all Atlas storage and snapshot volumes.

Atlas does not re-encrypt snapshots with the new CMK after rotation. Do not delete the old CMK until you check every backup-enabled cluster in the project for any snapshots still using that CMK. Atlas deletes backups in accordance to the Backup Scheduling, Retention, and On-Demand Snapshots. After Atlas deletes all snapshots depending on a given CMK, you can delete that CMK safely.

1
  1. If it's not already displayed, select the organization that contains your project from the Organizations menu in the navigation bar.

  2. If it's not already displayed, select your project from the Projects menu in the navigation bar.

  3. In the sidebar, click Advanced under the Security heading.

    The Advanced page displays.

2
3
  1. Enter the following information:

    Field
    Action

    AWS IAM role

    Select an existing AWS IAM role that already has access to your KMS keys, or authorize a new role and grant this role access to your KMS keys with the following permissions:

    To learn more, see Role-Based Access to Your Encryption Key for a Project.

    Customer Master Key ID

    Enter your AWS customer master key ID.

    Customer Master Key Region

    Select the AWS region in which you created your AWS CMK.

    Atlas lists only AWS regions that support AWS KMS.

  2. Click Save.

Atlas displays a banner in the Atlas console during the CMK rotation process. Do not delete or disable the CMK until your changes have deployed.

During a regional outage, your AWS KMS region might become unavailable. If you've enabled Encryption at Rest using Customer Key Management, you can perform encrypt and decrypt operations while at least one node is still available. However, if all nodes become unavailable, you can't perform cryptographic operations. A node becomes unavailable if it restarts during the outage.

To get the unavailable nodes to a healthy state, you can reconfigure your current AWS KMS region to an available region. To change your KMS region, your AWS KMS key must be a multi-Region key. To create a multi-Region Key, see the AWS documentation.

Note

You can't convert a single-Region key to a multi-Region Key.

To reconfigure your AWS KMS region, complete the following steps in Atlas:

1
  1. If it's not already displayed, select the organization that contains your project from the Organizations menu in the navigation bar.

  2. If it's not already displayed, select your project from the Projects menu in the navigation bar.

  3. In the sidebar, click Advanced under the Security heading.

    The Advanced page displays.

2
3

To ensure that Atlas doesn't re-encrypt your data, verify that the AWS IAM role and Customer Master Key ID reflect your existing credentials.

4

Select another AWS region for which you have configured your multi-Region key.

5
